the bench, automatedAI agent to automate lab instrumentsand electronics testing, in minutes

TestFlow connects to your instruments. Send the test intent, and it builds the automation, the test plan, and runs the test for you.

Download TestFlow book a demo →

AgentTestFlow · bench

Load transient test: sweep 5-20 V, capture CH1

I’ll sweep the USB-PD levels inside a loop, step the dynamic load, and capture the scope response at each level.

Generated workflow5 nodes

Loop4 iterations · ${v_load_sweep}
Power SupplyKeithley 2450
OscilloscopeTektronix MDO
Delay1000 ms
Dynamic LoadChroma 6200P

Run it on the bench

Running on the connected bench. Four iterations, asserting overshoot under 200 mV.

iteration 3 of 4

PASS4 of 4 iterationsworst overshoot151 mVripple pk-pk38 mVtotal run6.4 s

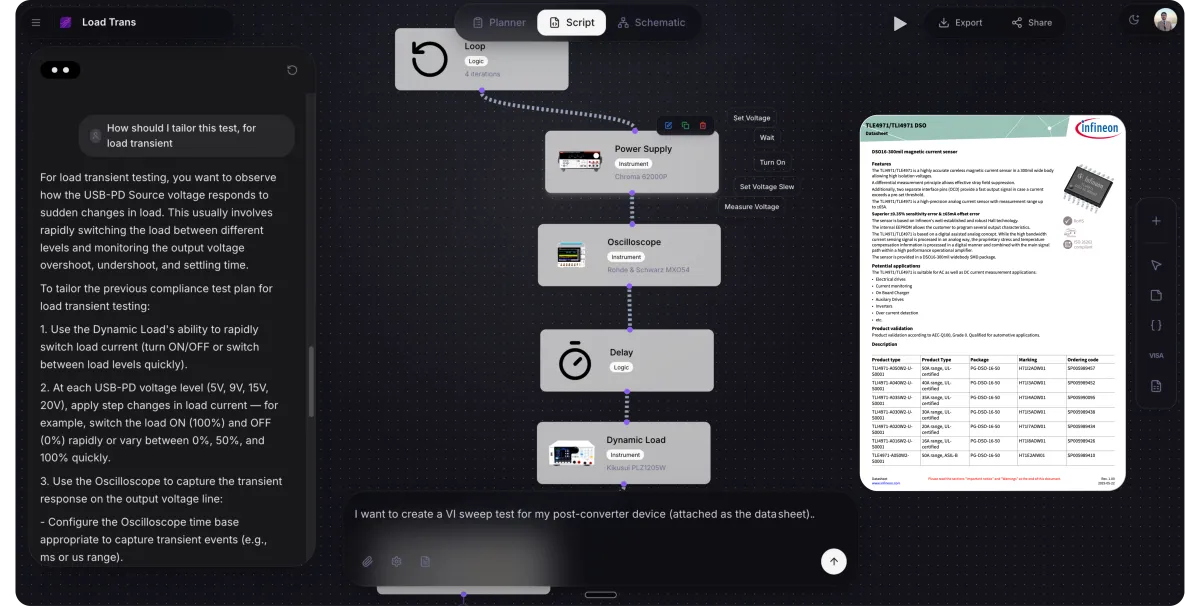

Load transient test: sweep 5-20 V, capture CH1Describe a test, or ask for a change

Workflow6 steps3 instrumentswritten in 4s

No workflow yet

Start

Loop × 4${v_load_sweep}

Power SupplyKeithley · 2450

1.Set VoltageV=${v_load_sweep}
2.Turn On:OUTP ON

OscilloscopeTektronix · MDO

1.Set Timebase1 ms
2.Measure AmplitudeCH1

3Delay 1000 ms

Dynamic LoadChroma · 6200P

1.Set Current2.5 A step
2.Output On:INPut ON

End

Script/load_transient.atomsATOMS

// no script yet

#START_SCRIPT
Loop_start(1): 4 (N1)
Variable: v_load_sweep
Range: (5,20)
#NODE1 (Power Supply, 2450, Keithley)
INST:: SMU_2450
CMD: :SOUR:FUNC VOLTage
CMD: :SOUR:VOLT ${v_load_sweep}
CMD: :OUTP ON
#NODE2 (Oscilloscope, MDO, Tektronix)
INST:: MDO_01
CMD: HORizontal:SCAle 0.001
CMD: MEASUrement:IMMed:TYPe AMPLitude
QRY: MEASUrement:IMMed:VALue?
ASSERT: overshoot < 200mV
#NODE3 (Delay)
Delay: 1000,ms
#NODE4 (Dynamic Load, 6200P, Chroma)
INST:: LOAD_6200P
CMD: :CURR 2.5
CMD: :INPut ON
Loop_end(1)
#END_SCRIPT

PSU Load Transient0.0s0.4s0.8s1.2s1.6s2.0s2.4s2.8s3.2s3.6s4.0s4.4s4.8s5.2s5.6s6.0s6.4sRunning

Startsession opened
Power SupplySOUR:VOLT 5.0 · OUTP ON
Oscilloscope1 ms timebase · CH1
Delay1000 ms
Dynamic Load2.5 A step

Execution log

12:41:02VISA open USB0::0x05E6::0x2450 … OK
12:41:02VISA open USB0::0x0699::0x0522 … OK
12:41:02VISA open USB0::0x1698::0x0837 … OK
12:41:03Loop 1/4: v_load_sweep = 5.0 V
12:41:03:SOUR:VOLT 5.0 · :OUTP ON
12:41:04HORizontal:SCAle 0.001
12:41:04CH1 5.02 V · overshoot 138 mV
12:41:06CH1 15.01 V · overshoot 147 mV
12:41:07CH1 20.03 V · overshoot 151 mV
12:41:08overshoot < 200 mV, PASS (4/4)

Live capture · Tektronix MDOAcquiringCaptured

CH1 5 V/divCH2 100 mV/div AC1 ms/div · trig CH1 ↗ 2.5 V

Vpp 15.01 Vovershoot 147 mVripple 37 mVCH1 · 15 V level

level	overshoot	undershoot	ripple	settling
5 V	138 mV	121 mV	34 mV	1.6 ms
9 V	142 mV	126 mV	36 mV	1.7 ms
15 V	147 mV	133 mV	37 mV	1.8 ms
20 V	151 mV	138 mV	38 mV	1.8 ms
worst	151 mV	138 mV	38 mV	1.8 ms
limit	< 200 mV	< 200 mV	< 50 mV	< 3 ms
margin	24%	31%	24%	40%

PSU Load Transient.pdf · written by the run

speaks to the instruments already on your bench

Introducing
TestFlow Agent
one bench, every instrument,
one workflow that reruns

TestFlow Agent turns a plain-English request into automation that drives the instruments already on your bench

Download TestFlow

close the loop

from plain English to a running bench, and back

Describe it, review what the agent wrote, run it on real hardware, and keep the workflow. The next revision reruns the same thing.

Download TestFlow

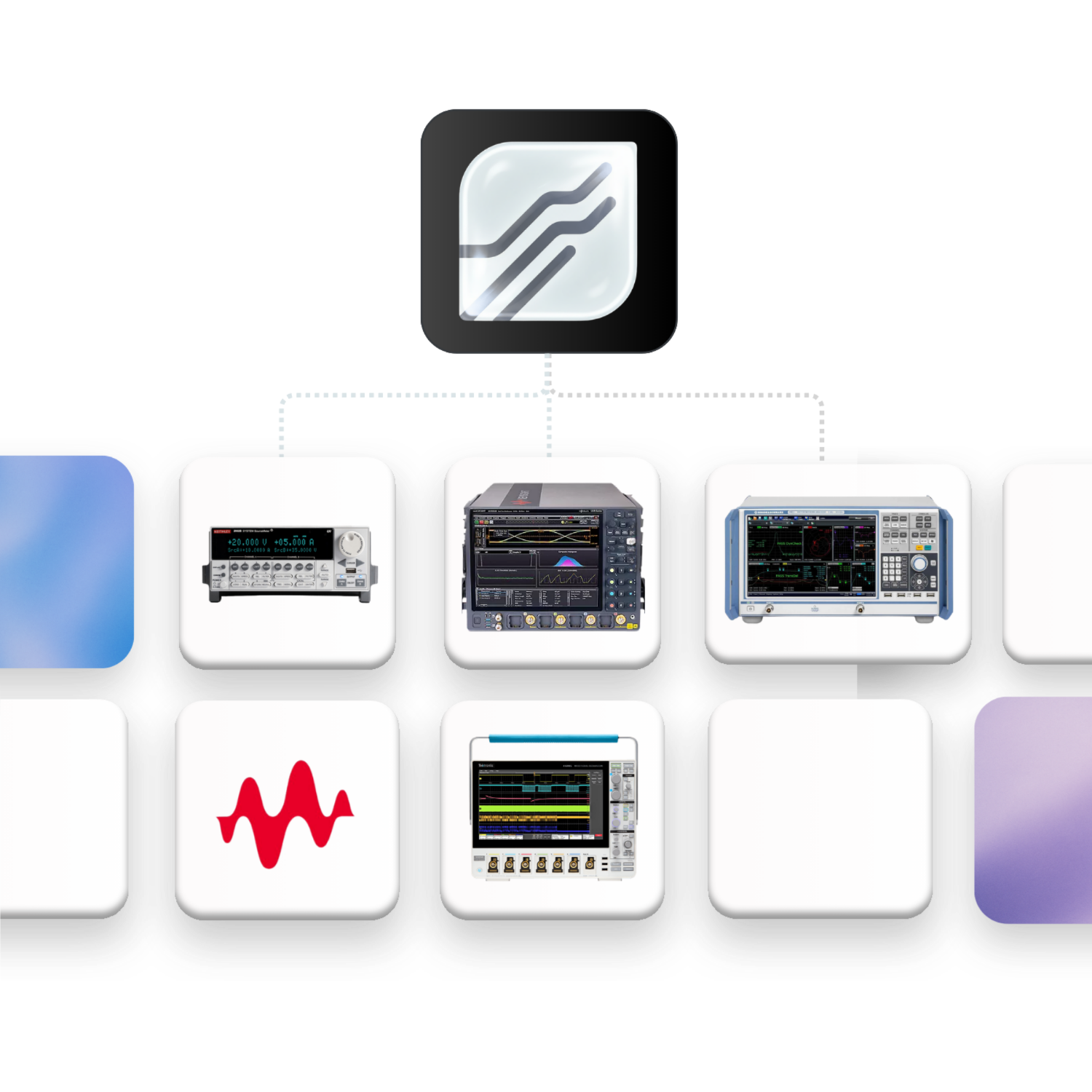

connect any instrument on your bench

TestFlow speaks to any instrument from any vendor, so the workflow you write today survives the hardware you buy next year

plain English and automation, one language

The agent writes the workflow it runs. Nothing is lost between what you described and what drives the bench

how it works

AI-native automation for electronics validation

Four steps, one workflow. TestFlow maps the bench, writes the test from a sentence, runs it on the real instruments, and keeps every result against the same workflow.

01.

Connect your instruments

TestFlow scans the bench, answers every VISA address it finds, and maps each instrument automatically. No drivers to write.

02.

AI generates your test workflows

Describe the test in plain English. TestFlow returns a structured workflow and the executable behind it, both editable before anything runs.

03.

Execute in the lab

Run it on the real instruments and watch the sweep, the log, and the limit checks resolve live.

04.

Review, analytics, and insights

Every run lands against the same workflow, so pass rates, drift, and out-of-spec parameters are history rather than a spreadsheet.

features

Everything your validation team needs to move faster

TestFlow gives your engineers a complete AI-native platform to plan, generate, execute, and report on chip validation, electronics testing, and systems testing. From first spec to final report.

>run a load regulation sweep on the 3V3 rail

01psu.set_voltage(3.3)

02load.sweep(0, 2, "A")

03scope.measure("overshoot")

ready to executeload_regulation.py

Agentic Test Generation

TestFlow's AI agent converts your validation plan into production-ready test scripts instantly. No scripting from scratch, no manual workflow coding. Executable and instrument-aware from the start.

spec.pdfcoverage map

47 test cases100% coverage

AI Test Planner

Upload your datasheet and TestFlow maps your entire validation coverage automatically. No more cross-referencing specs manually. Plan in minutes, not weeks.

power_validation_planAKSRMJ

v3AKadded 3V3 margin steps

v2SRswept load 0 to 2 A

v1MJinitial plan from spec

3 engineers, one plan

Team Collaboration

Keep every engineer working from the same source of truth. Share workflows, track execution, and eliminate scattered Excel files and lab notebooks. One platform, full visibility.

01initializepsu, load, scope

02sweep0 to 2 A, 100 steps

03logcsv + pdf report

Visual Workflow Builder

Build complex multi-instrument sequences with a drag-and-drop canvas. No scripting required to sequence power supplies, scopes, and loads. Days of setup reduced to an afternoon.

run historylast 10 runs

94% passed6% failedreport.pdf

Advanced Reporting

Every test run auto-generates a structured PDF with waveforms, measurements, and pass/fail analysis. No manual result compiling. Audit-ready documentation, instantly.

Works with your lab stack

Connect instruments, test data, and engineering workflows in one place. Keep your current setup and scale validation faster.

Keysight
Rohde & Schwarz
National Instruments
Tektronix
Keithley
Agilent
SCPI
VISA

explore

Discover the TestFlow platform

TestFlow dashboard: connected lab instruments, recent test runs and their pass or fail state

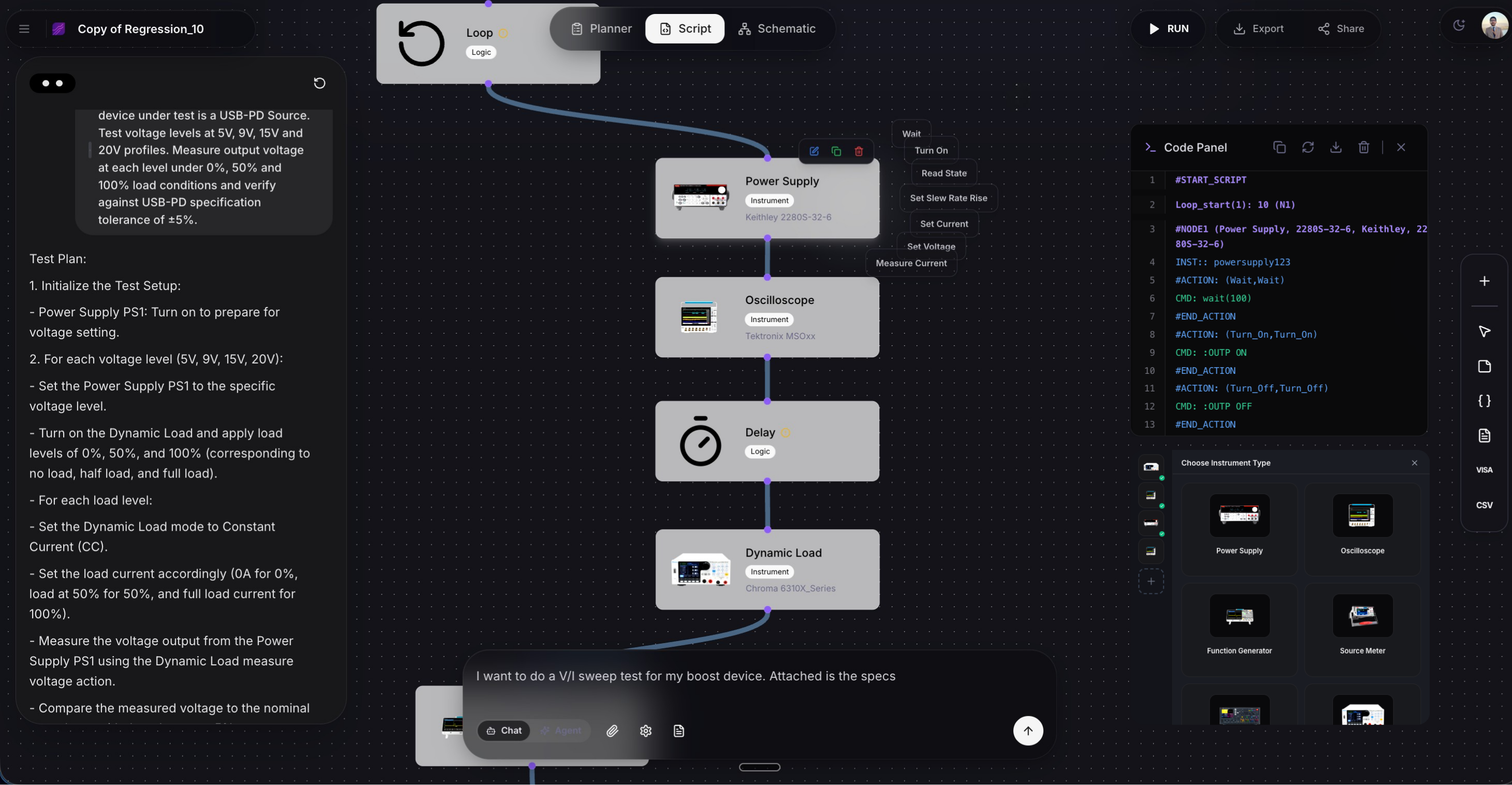

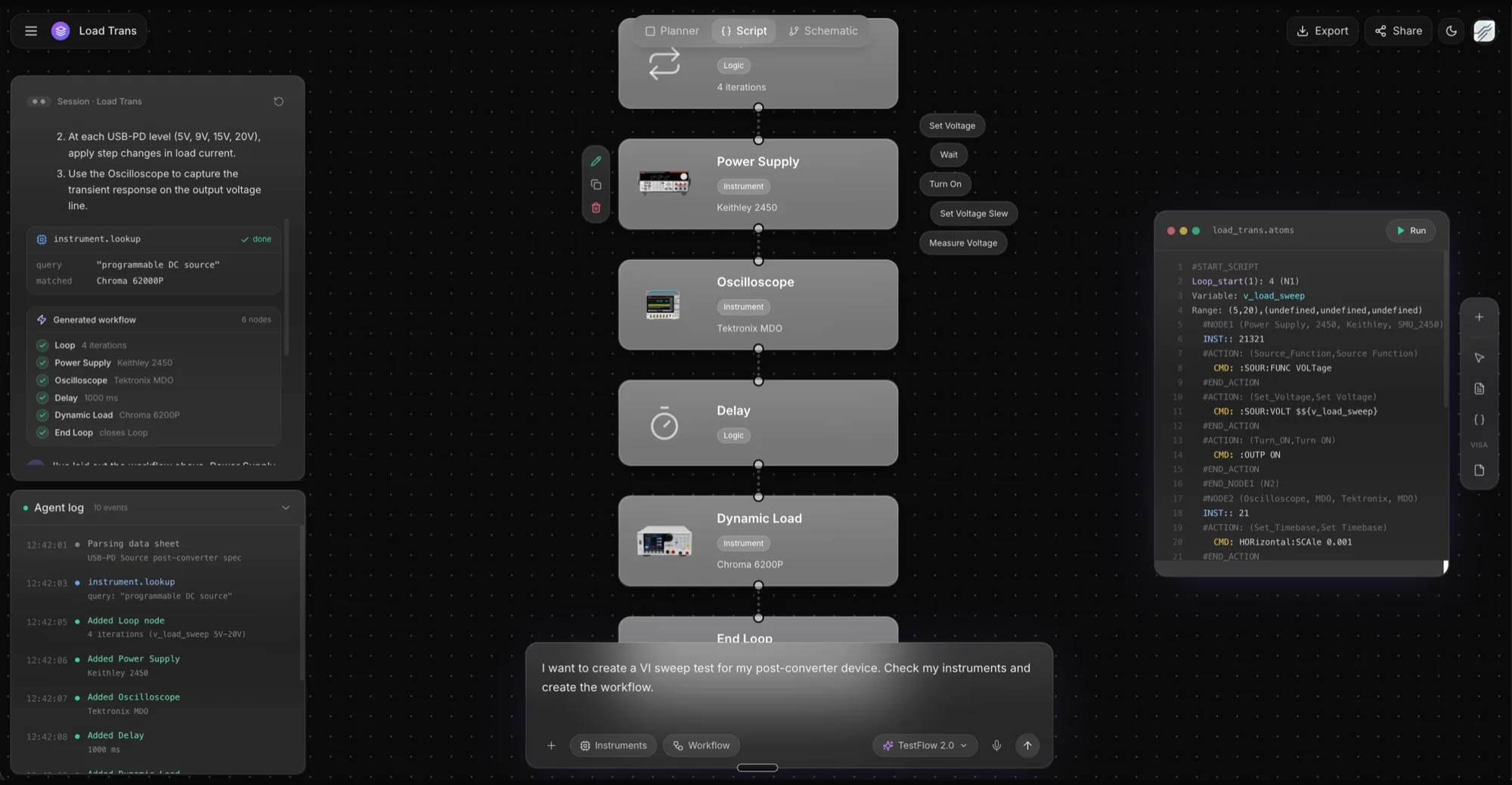

TestFlow agent playground turning a plain-English test request into an executable instrument workflow

TestFlow executer running a test workflow on real instruments with the measurement plotting live

TestFlow validation planner mapping datasheet specifications to test coverage

comparison

Stop juggling tools. Start running reusable test flows.

Drop the tools you don't need anymore. TestFlow has instrument control, test sequences, data capture, and reporting built in.

before · without TestFlow

Every tool speaks its own language. Nothing you set up in one carries into the next.

Validation work scattered across disconnected tools, spreadsheets, and hand-written scripts

after · with TestFlow

One platform. Instruments, sequences, data, and reports all in the same place.

Any Instrument
Analytics
Collaboration
Templates
AI Scripting
Workflows
Monitoring
Datasheets
Sequencing

security

Enterprise-grade security and privacy.

We take security and compliance seriously. Your data stays yours. Data encryption. Secure integrations. TestFlow is built for enterprise-grade validation workflows. We are in the process of obtaining SOC 2 and GDPR compliance.

Your data stays yours

Your data and your measurements are only saved locally to your machine and only accessible to your team. They are never used to train our models or shared with third parties.
